MAVOLUX 5032 B – KIT
Illuminance meter class B DIN 5032-7

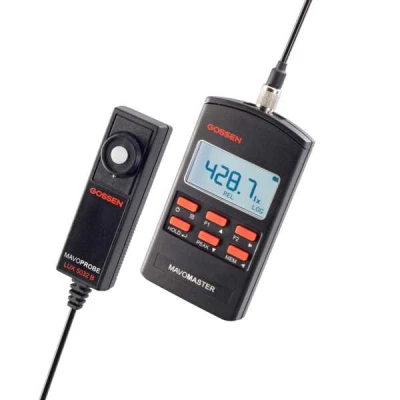

The combination of MAVOMASTER, MAVOPROBE LUX 5032 B forms a high-precision illuminance measuring device and is classified according to class B DIN 5032-7, DIN EN 13032-1 Appendix B and ISO/CIE 19476. It measures the intensity with which an area is illuminated in lux (lx) or foot-candle (fc).
- High-resolution measuring range for emergency lighting
- Simple functional expansion with optional luminance attachment
- Grid measurement for the assessment of workplaces and interior lighting
- Extensive measuring functions, relative, integral, deviation, ratio measurement
- Recording of minimum value, maximum value and mean value calculation
- Data logger with adjustable log interval
- Large 4 GB measured value memory, readable via USB, such as an external drive on the PC
- Continuous operation via USB with power bank, plug-in power supply or on the PC
- EXCEL macros for reporting and data logging
- Measuring device and calibration from a single source!
The MAVOLUX 5032 B kit is primarily used for certification and inspection applications due to its high Class B accuracy. An additional measuring range with a high resolution of 0.001 lx enables the measurement of the lowest illuminance levels. This means that even emergency lighting can be measured excellently. The kit also includes a rubber protective cover with stand for special shock protection and an aluminum case for protected storage and safe transport.
1 x MAVOMASTER
1 x MAVOPROBE LUX 5032 B
1 x rubber protective cover
1 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to plug Micro-B, length 1.0 m
1 x EXCEL reporting / datalogger (download)
1 x aluminum transport case
1 x operating instructions D/GB
1 x final test certificate
Illuminance
- Measuring range: 0.001 lx … 199990 lx
- Accuracy: +/- 2.5% +/- 1 digit
Luminance with optional luminance attachment M516G
- Measuring range: 0.01 cd/m² … 1,999,900 cd/m²
- Accuracy: +/- 3.5% +/- 1 digit (paired) or +/- 5% +/- 1 digit (not assigned)
Miscellaneous
- Measuring rate: 2 measurements / second
- Probe connection cable: 1.5 m, pluggable
- Supply: 1 × 1.5 V Mignon type AA, continuous operation via USB interface
- Interface: USB 2.0, Micro-B socket
- Memory: 4 GB
