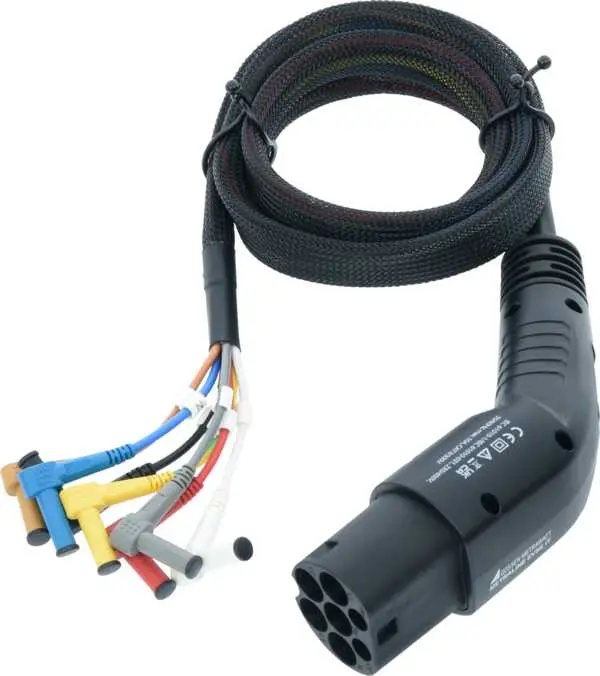

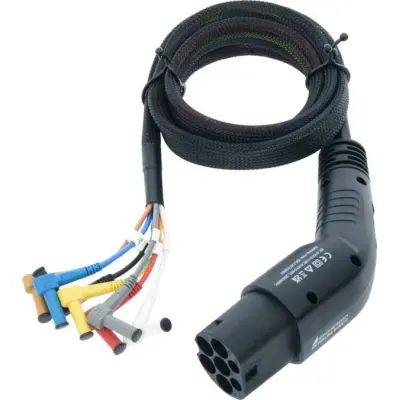

METRALINE EVSE IT
EVSE Adapter
Single/3-phase test adapter for testing the functionality and effectiveness of protective measures at e-charging points in combination with the METRALINE MF installation tester
- Simulation of the charging process per IEC 61851-1 / VDE 0122-1
- Direct connection to the installation tester
- No other adapters required
The new METRALINE EVSE IT adapter offers increased flexibility at work and enables effortless connection between the AC charging point and the METRALINE MF installation tester. Developed as an accessory for the installation tester, this adapter permits simulation of CP states A, B, C and E.
1x METRALINE EVSE IT (Z525M)
1x Short-form Operating Instructions
- PP simulation, 20 A
- CP states A, B, C and E
- 4 mm safety plugs
- CAT II 300 V
- Simple operation, perfectly matched to the way you work
- Convenient and safe adaptation to AC charging points
- Versatile application options in combination with the installation tester
