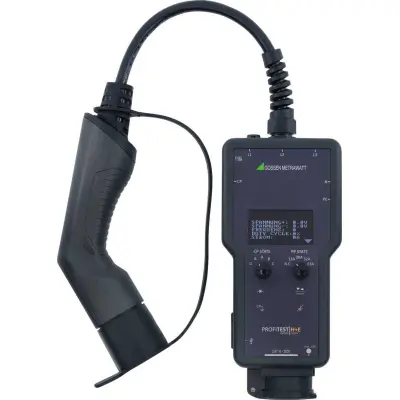

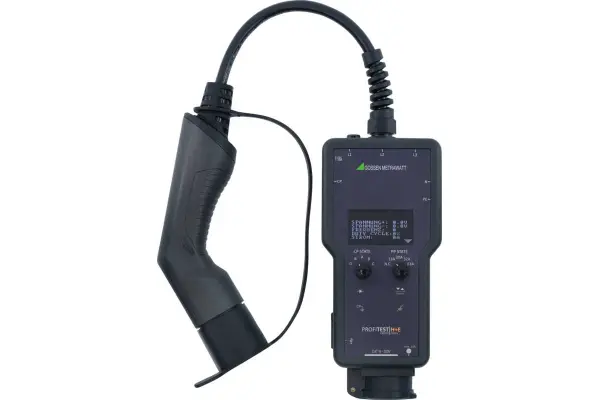

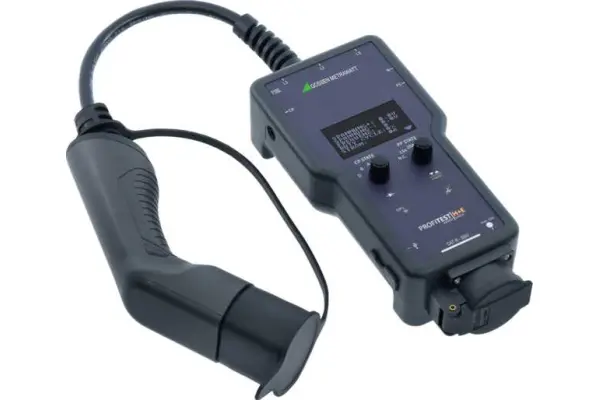

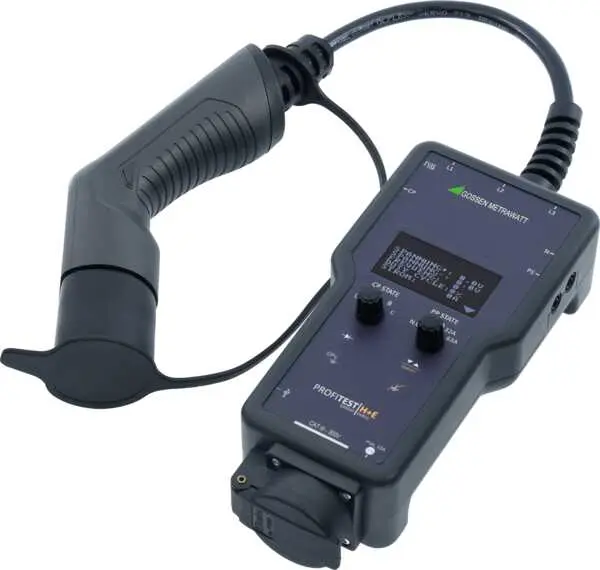

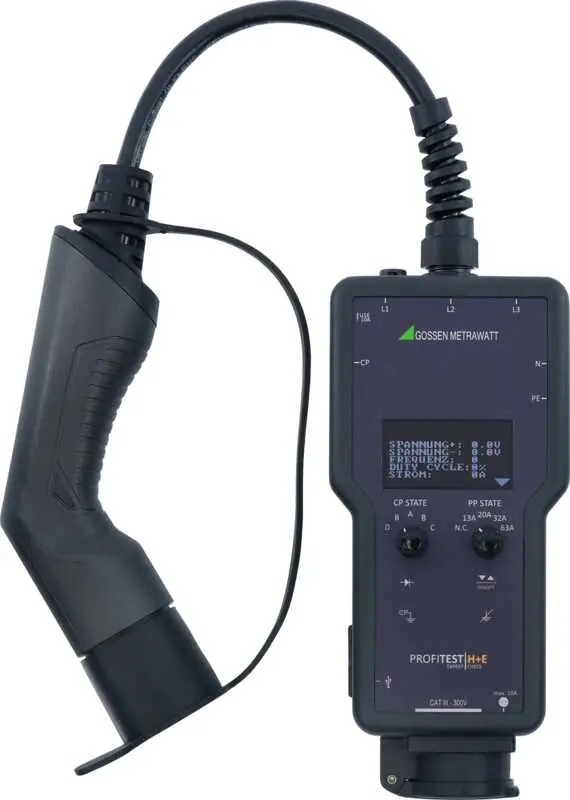

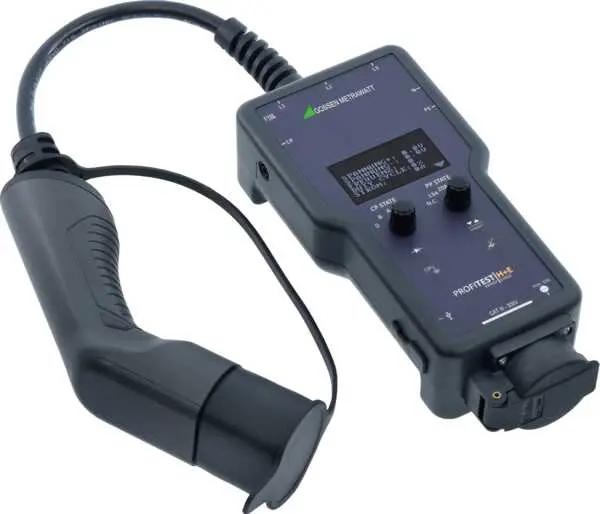

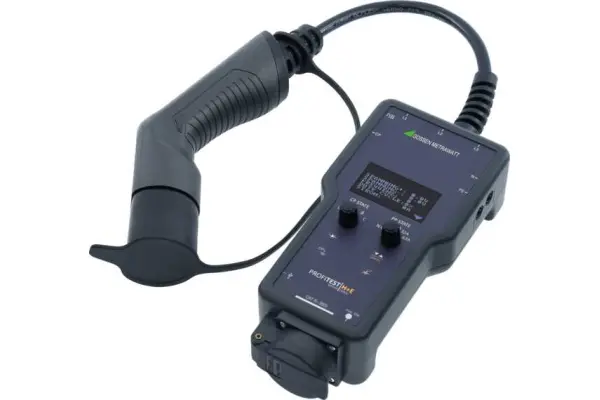

Contribute to a safe future for e-mobility with the diagnostic tester and test adapter! The rugged instrument is distinguished by extended testing functionality and easy, user-oriented operation. In addition to functional testing of charging stations in accordance with DIN EN/IEC 61851-1 (VDE 0122-1), the new tester also facilitates electrical testing of the charging infrastructure. The PROFITEST H+E EXPERT CHECK is combined with instruments from the PROFITEST MF or PROFITEST MASTER IQ series to this end.

1 PROFiTEST H+E EXPERT CHECK (M525F)
1 charging cable (micro USB plug)
1 operating instructions

• Testing of AC charging points in charging mode 3
• Connection to the charging socket or the type 2 plug of an AC charging point
• Measured values appear at the display in plain text
• Checking of vehicle states (CP states A, B and C), as well as phases, phase sequence, duty cycle and frequency
• Settings for maximum current carrying capacity of the charging cable (PP): 13, 20, 32 or 63 A and NC
• Fault simulation: diode test, CP-PE short-circuit (CP state E) and PE interrupt (standards-compliant interrupt with display of tripping time)
• Measurement inputs and earthing contact socket for connecting a test instrument and an external load
• 4 mm safety sockets
• Measuring category: CAT III 300 V
• USB port for charging the battery
• Multilingual (German, English, French)

The instrument is used for service and maintenance of the AC charging infrastructure. The PROFITEST H+E EXPERT CHECK makes it possible for electricians to quickly and safely test the functionality, electrical safety and personal protection of single and 3-phase AC charging points in charging mode 3 with type 2 socket or permanently attached type 2 cable.

• Combination with the tester reduces costs and saves time
• Simple, lightweight and rugged: suitable for mobile use
• Intuitive operation with display of results in plain text
• Error display with results for forwarding to service personnel
