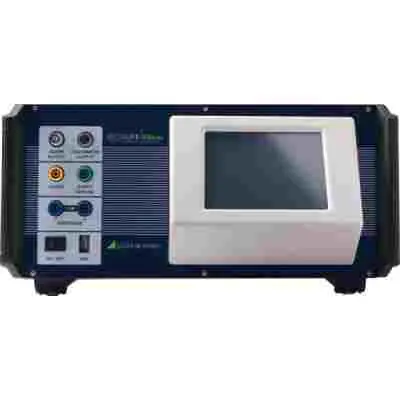

SECULIFE ES XTRA
Electrosurgical Analyzer
- True RMS measured values with DFA® technology
- Auto-sequence mode
- Connection of external loads
- Internal loads from 1 to 6400 Ω in 1 Ω steps
- Network compatible
- Industry-standard current measuring technology
- mV, mV peaks, ma, crest factor and power ranges (Watt)
- QVGA color display with touchscreen
- Measuring accuracy of 1% of the measured value
- Digital calibration – no rotary potentiometers
- Selectable display options
- Graphic representation of the measured RF signal on the screen
- Standard (1000 mV) and low range (100 mV) with autoscaling function
- Measurement mode for pulsed HF waveforms for pulsed outputs with low duty cycle
The SECULIFE ES XTRA represents a totally new standard in full-featured electrosurgery analyzers, with features that have never been seen before. It offers unprecedented features and capabilities, all in a self-contained “conventional” electrosurgery analyzer.
1 Operating Instruction
1 Cable set
- Industry Standard RF Current Measurement
- Continuous & Pulsed Output Waveform Compatible
- Embedded Real-Time Operating Syste with ¼ VGA Color Touch Screen Display
- Displays Up to 15 Different Measurement
- Parameters with User Selectable and Definable Screens
- Internal Precision Test Loads From 1 to 6400 Ω in 1 Ω Increments
- External Test Load Compatibility
- Automated Power Load Curves with Multiple
- Power Settings Per Load Setting
- Automated User-Definable Testing Sequences
- Print Test Reports to RS232 or USB Printer
- USB (3), RS232, and Ethernet Communication Ports
- External Keyboard and Mouse Compatible Via Dedicated Ports
- Automatic or Manual Activation of ESU
- Generator During Power Load Curve Tests
- Remote Communications Capability with ESU Generators
- REM/ARM/CQM Testing Via 500 Ω Adjustable Load in 1 Ω Increments
- RF Leakage Current Measurement
- Capture, Store, Print RF Waveform
